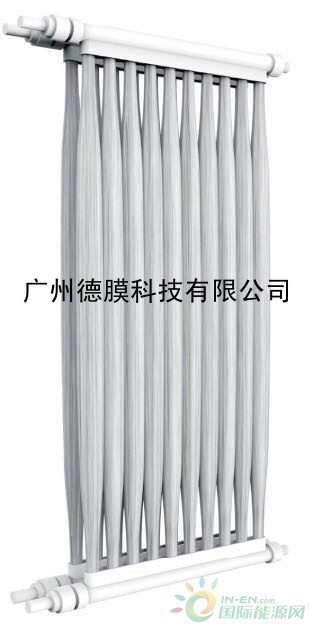

韩国迪尔富斯原装进口帘式膜，通量大，抗污堵，5年质保

组件            DFM-1000     DFM-1500     DFM-2000

有效膜面积         10㎡         15㎡         20㎡

分离膜结构                    中空纤维

分离膜材质                     PVDF

标称孔径                       0.2un

外径/内径                   2.3mm/0.9mm

抗拉强度                    <1.5kgf/fil.

设计通量                 0.3~0.8m³/㎡·day

元件大小   620[W]x1000[H]x46.5[D]    620[W]x1500[H]x46.5[D]   620[W]x2000[H]x46.5[D]

元件重量          6kg[dry]       8kg[dry]       10kg[dry]

膜壳材料                       ABS

灌封材料                   环氧树脂+聚氧脂

运行压力

运行压力                    0.05~0.4bar

MLSS                       3.000~12.000

PH                         1~12

运行水温                   1~40°


2、浸入式分离膜组件规格

处理用量       型号名                       规格

[m³/day]                       长[mm]      宽[mm]      高[mm]

10           DFM-1000 4F         750         350        1200

20           DFM-1000 7F         750         530        1200

30           DFM-1000 10F        750         740        1200

40           DFM-1000 14F        750         740        1200

50           DFM-1000 16F        750         1070       1200

30           DFM-1500 10F        750         740        1700

45           DFM-1500 14F        750         980        1700

60           DFM-1500 16F        750         1070       1700

80           DFM-2000 14F        750         980        2200

100          DFM-2000 16F        750         1070       2200

3、效率

类型    流入                 渗透水

        平均      标准[2016]    平均       效率[％]

BOD    200.0        <10            <3.0         98.8

COD     250.0        <40            <10.0        96.0

SS      200.0        <10            <3.0         98.5

T-N     40.0         <20            <18.0        55.0

T-P      6.0         <2             <1.5         75.0

E-coli   2000.000     <3.000           N.D        100.0
